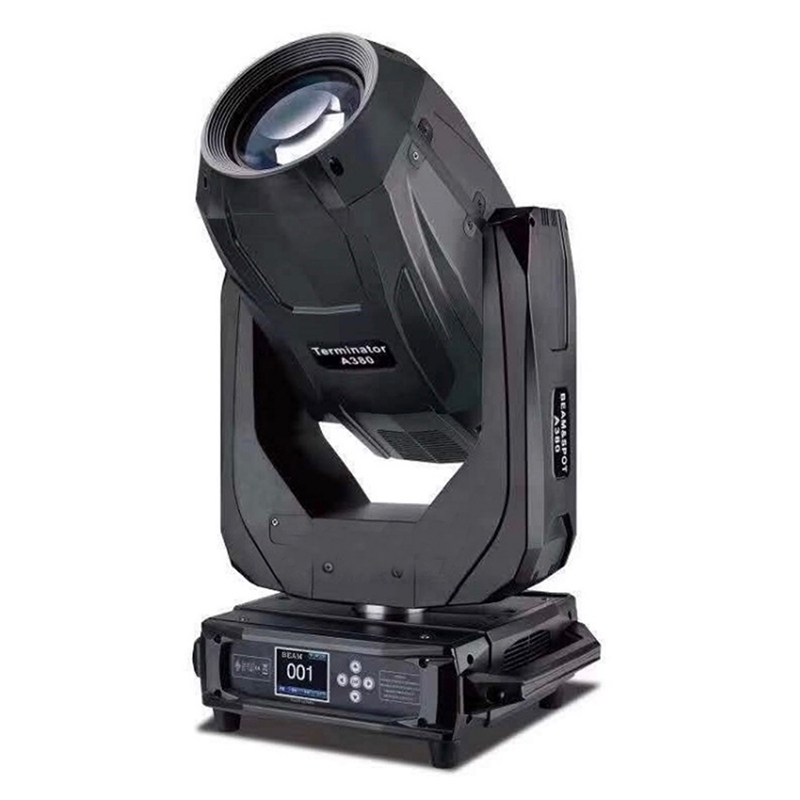

380 3in1 beam light
beam & spot & wash 3in1 function.
Input voltage / frequency: AC100V-240V, 50/60Hz.
Rated power:550w
Light source:YODN 18R 380w bulb
Beam angle:2°-60°
Control channel: 20/24CH
Color temperature：6700K/4500K/3200K
Operating mode: voice control, self-propelled, master-slave, DMX512
Color wheel:1x color wheel with 11 colors + white（half color effect），linear color conversion，can rotate in both directions rainbow effect
Gobo wheel: 1x static gobo wheel with 14 gobos +white, 1 static effect gobo ,rotating gobo wheel:7 gobos + white light Pattern: beam, and wash 3in1 function
Prismatic mirror: two independent prism discs, prism overlapping functions, prism can rotate in both directions, prism positioning function.
Focusing: DMX linear high-definition focusing, 2 meters to infinity sharpness adjustment, the far and near definition of the gobo can be adjusted freely.
Atomization: It can produce soft effect adjustment, 0%~100% linear atomization.
Strobe: Double-chip high-speed strobe, 1-15 times / sec.
Dimming: 0-100% mechanical linear dimming.
Horizontal/Vertical: Horizontal scanning angle 540°, vertical scanning angle 270°, 8 or 16Bit precision fine adjustment, automatic return and correction function; fast speed, smooth running without flick, low noise, accurate positioning.
Display interface: LCD liquid crystal display interface, can switch between Chinese and English display.
Motor:Three-phase motor, smooth operation, fast speed, low noise
Lamp housing: high temperature engineering plastics and alloy materials, streamlined design, beautiful appearance.
Protection level: IP20.
Dimensions: L × W × H mm
Package size: L×W×H mm
N.W: KGS, G.W: KGS
